Vacuum Pumps

---

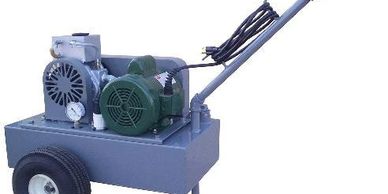

 Pump package comes with a Conde #3 vacuum pump with a 1 HP Motor on a heavy duty cart with 10" air tires and is capable of milking 2 cows, or four goats at a time. Uses standard 115V Household current. Ships fully assemblied.

Simplicity in a portable milking system is a must. It has to be easy to transport, use, clean and maintain. These are some of the reasons Mini-Milkers Portable milking systems have become widely used by large and small dairies, and show people. The biggest reason for the units popularity is the way that it milks. Gentle, fast and clean are words most users use to describe the milking performance of the Mini-Milker. The Mini-Milker is also known as the Nupulse Milker.

Pump Package Includes:  Vacuum pump. motor, gauge, regulator, vacuum tank, and carrying handle.

Features: Capable of milking two cows or goats at a time with a Mini-Milker (Nupulse) bucket assemblies lightweight, completely oil less, 110 volt, SHIPS UPS, some assembly required.

 Gas Engine Model Vacuum pump complete with gauge regulator, and two stallcocks. This vacuum pump can milk up to two cows, or four goats at a time. Great robust design. comes with 10" air tires

 NOTE: Buckets are NOT INCLUDED with Base Units. Order Buckets and Milking Clusters separately from the number of options available.

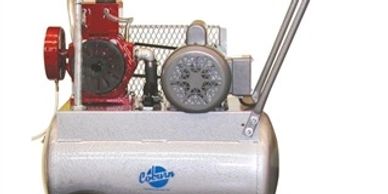

The Coburn PortaMilker II gives every dairyman the opportunity to use a highly efficient milking machine. PortaMilker II has four wheels for excellent maneuverability in the milking barn, two large non-corrisive hard rubber 10" tires at the rear, and two smaller wheels on casters in the front. Portamilker II is compact, easily maneuvered and easily transported. The Base Unit includes steel vacuum tank, lubricated Conde vacuum pump, spring-loaded vacuum regulator, vacuum cock, vacuum gauge, tires and wheels.

Base units and milking units are ordered separately. Click on "Additional Information" for a complete listing of options and stock numbers. The PortaMilker II pictured here includes #3005013 Base Unit with 1HP Baldor CSA-Approved Electric Motor, #3005113 Bucket & Lid Assy., and #3005205 Milking Cluster with Delaval Claw, shells, inflations and all necessary tubes and hoses.

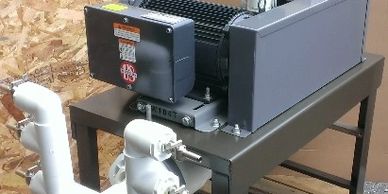

The 3 HP vacuum pump system comes with a CONDE # 6 vacuum pump with a 3 HP 1800 RPM farm duty motor on a stand. Also comes complete with a mark II Sentinal regulator and gauge

Just like the 70090 except this one comes with 6 stallcocks, and a pigtail that will be ready to wire into 220V circuit. It is essentially a "plug and play" type system. Just wire in, and hose over bucket units, and its ready to go.

 NOTE: Buckets are NOT INCLUDED with Base Units. Order Buckets and Milking Clusters separately from the number of options available.

The Coburn PortaMilker gives every dairyman the opportunity to use a highly efficient milking machine. The PortaMilker is compact, easily maneuvered and easily transported. PortaMilker Base Unit includes steel vacuum tank, lubricated Conde vacuum pump, spring-loaded vacuum regulator, vacuum cock, vacuum gauge, and large non-corrosive hard rubber 10 inch tires.

Base units and milking units are ordered separately. Click on "Additional Information" for a complete listing of options and stock numbers. The PortaMilker pictured here includes #3005001 Base Unit with 1HP Baldor CSA-Approved Electric Motor, #3005113 Bucket & Lid Assy., and #3005205 Milking Cluster with Delaval Claw, shells, inflations and all necessary tubes and hoses.

 The 3 HP vacuum pump system comes with a CONDE # 6 vacuum pump with a 3 HP 1800 RPM farm duty motor on a stand. Also comes complete with a mark II Sentinal regulator and gauge

Ready to plumb a 2" vacuum line into a milking parlor. Also will require 220V circuit for power. The unit will run up to six milking units

 Conde #6 vacuum pump is perfect for the "Build Your Own" Vacuum system. It can be used with a 2 or 3 HP Motor. It is rated up to 25 CFM. It comes with the oiler

Replacement Conde #3 pump for Deluxe Model vacuum pump packages with oiler

(Does not include fan guard)

 This kit is required if a second bucket assembly is being added to a Porta-Milker. Kit includes nipples, couplers, stall cock and a Muller Vacuum Regulator.

 3/4 HP Mini-milker pump only with cord. Does not include vacuum tank, handle, and regulator

3/4 HP Motor, 115/230 VAC

10 CFM Oil Free Pump

Ideal vacuum source for single bucket milker

Compact design is easy to transport & ideal for travel to shows

Pump is direct mounted on robust dual purpose moisture trap/vacuum reserve tank

Ships via UPS or other parcel carriers, no truck freight required.
